"UPGRADED" FXR Twin Cam Conversion Kit

From our good friend, Tony and his Team at Ramjet Racing...This is a kit that we have used pretty much on all of our FXR Twin Cam Conversions.

This kit makes modifying your FXR to accept the Twin Cam Drivetrain much easier.

This NEW Kit includes:

Stamp Pressed Steel Kick Stand Mount, that is set up for a 91-05 FXD Kickstand along with a Precision Machined Kickstand Block.

***91-05 COMPLETE Kick Stand Kit available in the "DYNA Parts" section of our Part Department***

This kit will included an array of brackets, tabs, panels and mounts allowing you to install a Twin Cam touring power train into an FXR chassis. The new main crossmember is designed to accept all DYNA kickstand components. No longer will you have to deal with crappy bent or rounded lock tab/ear on your FXR kickstand, no more paying for over priced FXR kickstand parts, and most importantly, having readily available replacement components at almost all H-D dealerships and aftermarket shops.

Ramjet Racing machined a very solid kickstand stop which gets welded to the bottom of the crossmember which guarantees a ton of engagement from the kickstand to ensure it doesn't "pop out" or bend and cause the kickstand to give or the bike to fall over

The new main crossmember is designed to accept all DYNA kickstand components and provided clearance for the oil pan.

The rear crossmember will be replaced to allow clearance for the touring oil pan and transmission as well. We include two alternatives (both pictured). One being the most common the "Wrap Around" style which will allow you to service your oil pan with out removing any other parts on the motorcycle like the rear wheel but still sitting low enough to protect the oil bag from speed bumps, curbs, etc.. The tubing is a .120" wall DOM used with two gussets.

Option two being the removable plate basically goes in place of the stock on but stronger and removable again to allow service the transmission oil pan, and to retain the OEM look not seeing the rear bar.

Both are include you can use either one or both… your choice.

For foot controls… removing the factory left side boxed in control mount is NOT required, but the right on is… as it will come out when removing the center crossmember and kickstand mount.

In its place this kit includes a right side foot control mount which is radius cut on the back side for a nice centered fit on your frame rail and threaded to accept a right side Dyna mid control mount.

Ramjet also includes an additional on in case you would prefer to run a Dyna mount on the left side also.

Also included is a plate to fill the void where the oil bag used to live, a cap for the the front engine mount. The oil bag filler plate is solid and can be used to mount many things on the inside such as a coil or wiring accessories.

100% MADE IN THE USA

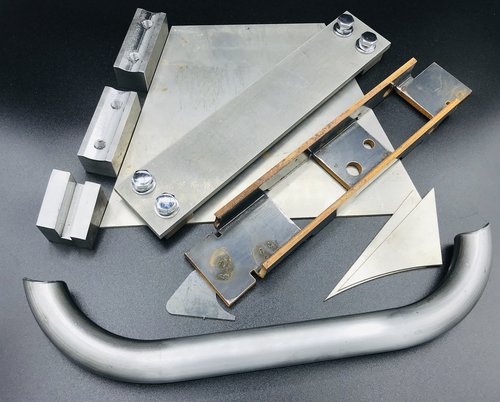

Standard kit includes:

• Main Center Crossmember

• Extra Strong Kickstand Stop

• Wrap Around Crossmember Tubing w/ (2) Tubing Gussets

• Rear Removable Crossmember Kit w/ Tabs and Chrome Hardware

• (2) Dyna Foot Control Mounts

• Oil Bag Filler Plate

• Front Engine Mount Cover Plate

*** Please note that this kit requires modification to your FXR Frame. Some skill with welding and fabrication is mandatory... when in doubt...CONSULT A PROFESSIONAL***
