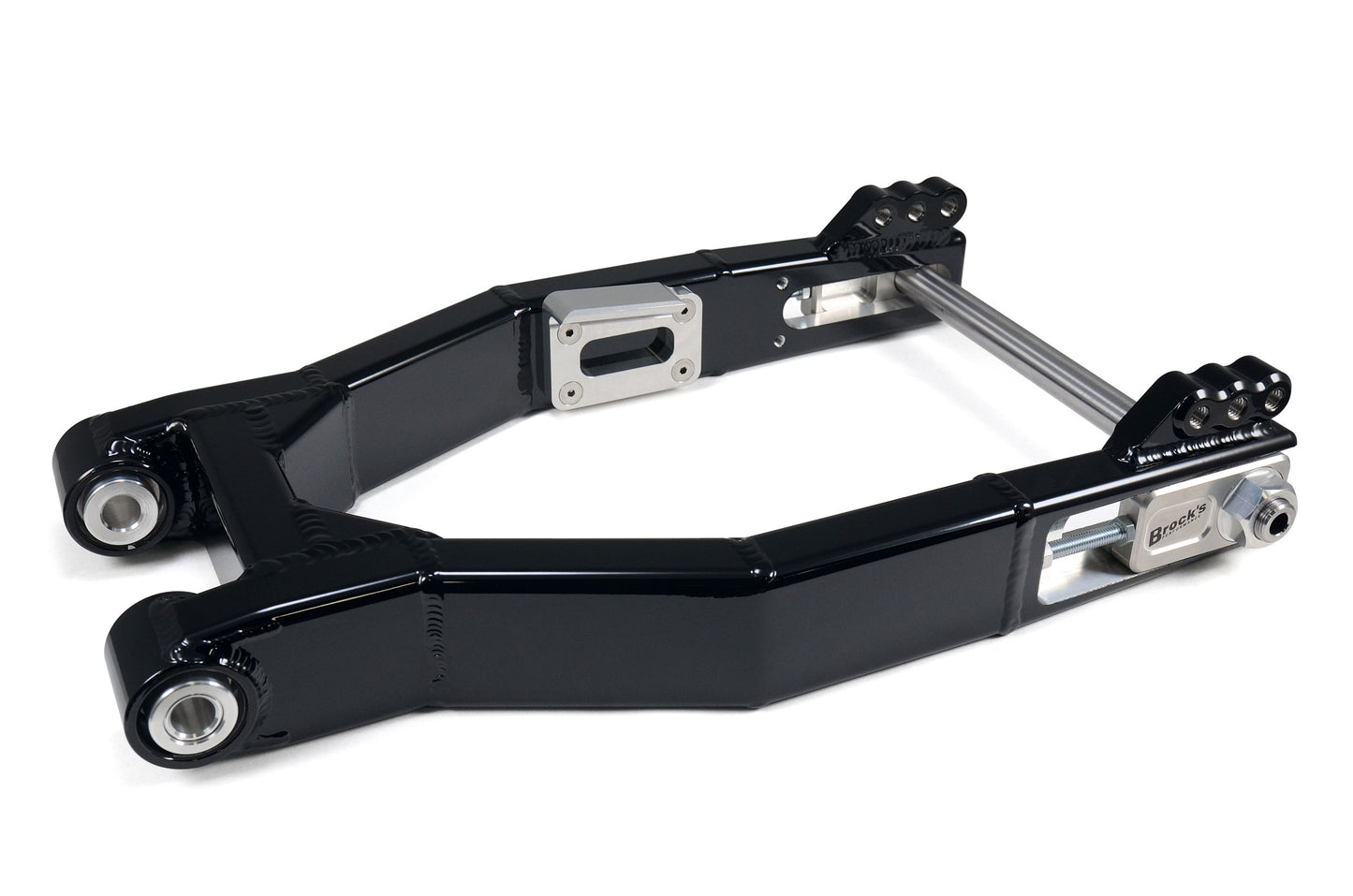

Brocks Performance Bagger Swingarm (Burnished) and (Black) for Harley-Davidson Touring Models (09-22)

• Handcrafted 6061-T6 aluminum extended swingarm
• 100% bolt-on design can be used with OEM rear wheel, caliper, spacers and associated components (see 'fitment' tab for model listing)
• Proprietary custom extrusion made exclusively for Brock's Performance
• Extends wheelbase from stock to 3 inches over
• Designed for use in high-power, high-torque applications
• Includes centerless ground hollow 4130 chromoly axle

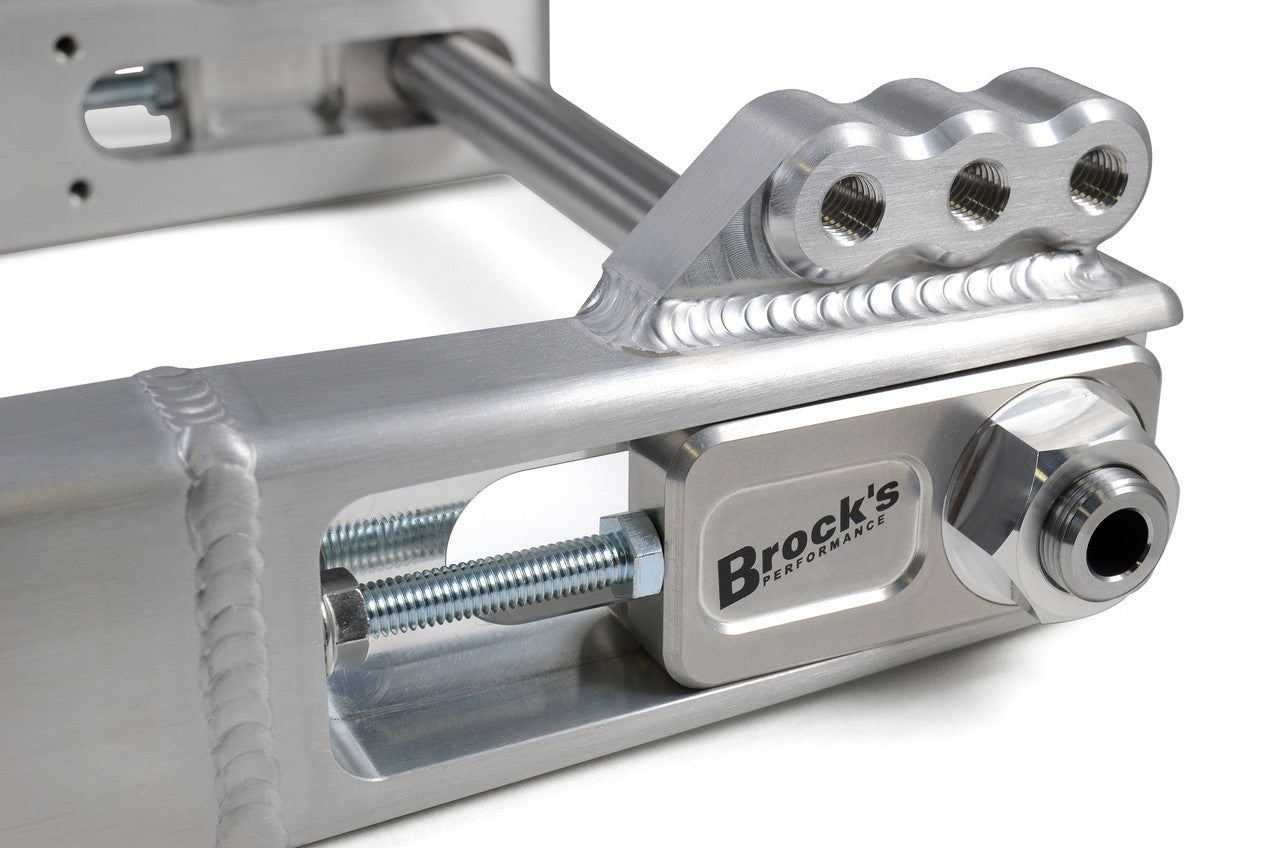

• Reversible billet aluminum axle adjusters for easy wheel adjustments
• Includes caliper bracket for use with OEM calipers
• PTFE® lined spherical bearings from Worldwide Bearings preinstalled
• Includes bushings to use the OEM 3/4” pivot shaft
• Interior swingarm width measures 10 7/8” at the axle
  (accepts 200 series rear tire on 6.75” wide rim with chain conversion)
• 42% weight savings vs OEM swingarm (see the 'technical' tab for details)
• Designed, machined, and assembled in the USA

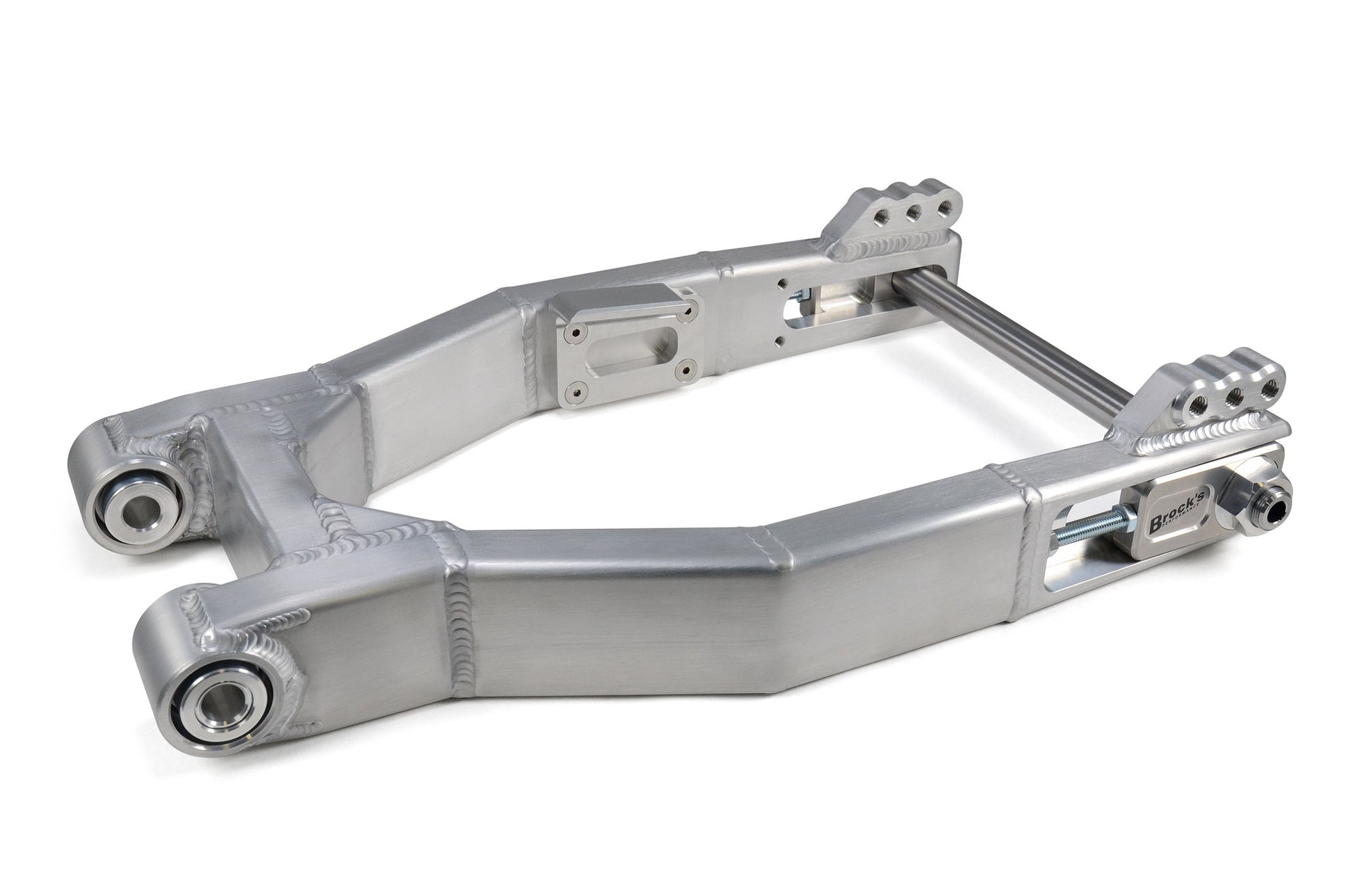

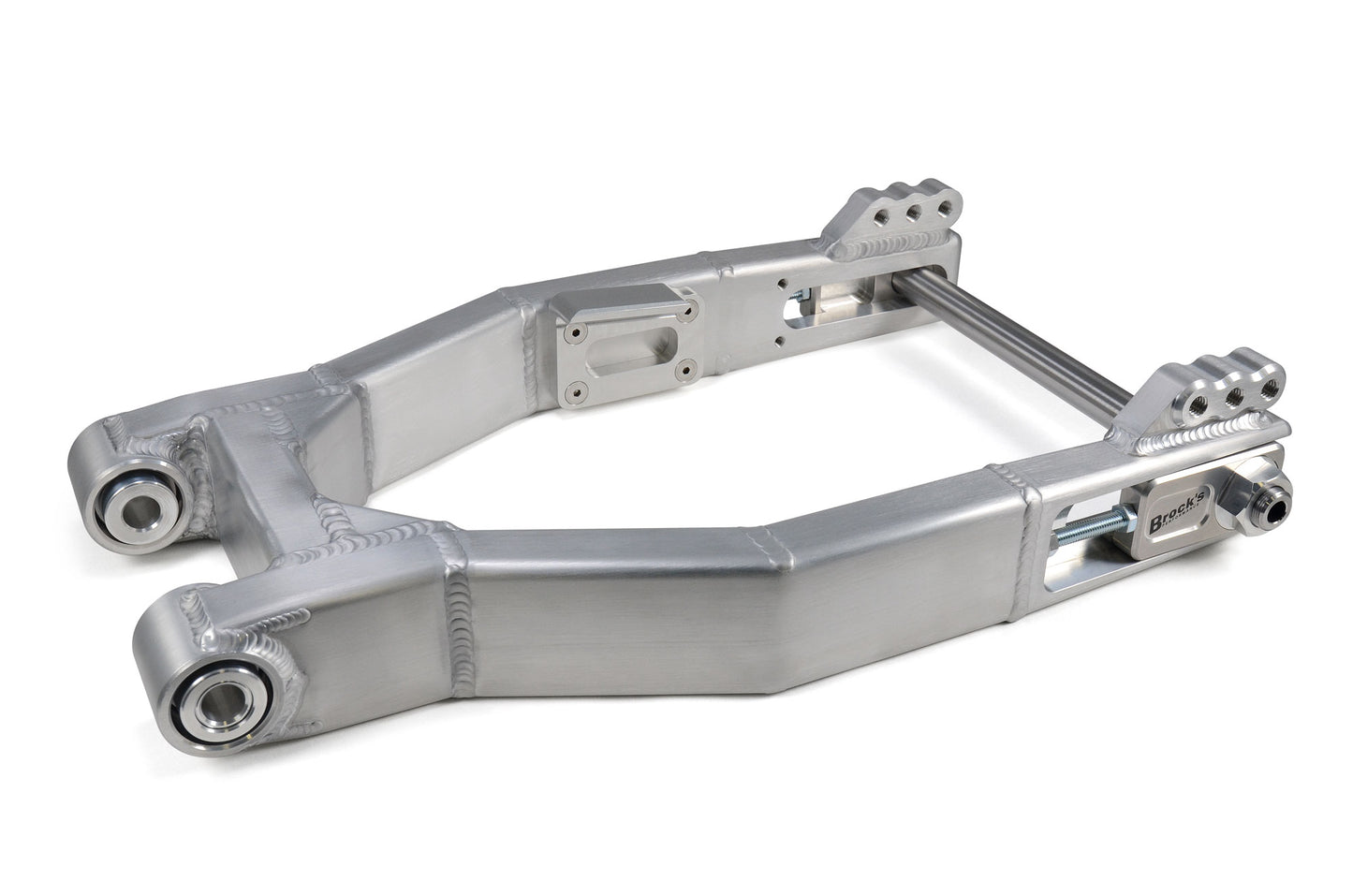

• Burnished raw aluminum finish

Shock Information:

• 3-position shock mounts allow flexibility in ride height (stock, -1”, -2”)
• Compatible with shock lengths up to 12.75”
• 13” shocks will fit but must be used in the -1” or -2” position
  (See West Coast Bagger for longer shock)
• H-D Premium Ride Touring Shocks will only work in the stock shock position
• Brock’s Performance recommends adjustable Bitubo shocks for best performance and adjustability

Exhaust Clearance Note: Due to potential changes in suspension geometry, additional clearance around the muffler may be required to avoid interference with the axle on some exhaust systems.
